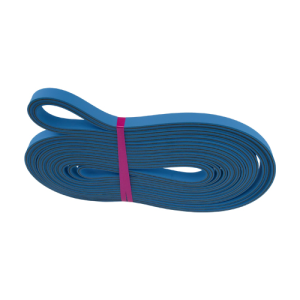

Folder Gluer Belt
TRANDVOX supplies folder gluer belts for carton folding and gluing machines used in packaging and paperboard converting lines. Designed for stable carton handling through folding, gluing, transfer and delivery sections, these belts provide consistent grip, dimensional stability and reliable flexing during continuous machine operation.
For replacement folder gluer belts, TRANDVOX can help match specifications from an existing belt, machine model, part number, drawing or sample.
Folder Gluer Belt Constructions
Folder gluer belts are available in different traction-layer and surface constructions according to machine position, operating speed, pulley diameter, belt path and joining requirements.
Polyamide-Based Construction
Polyamide-based constructions are suitable for folder gluer positions requiring stable tension, repeated flexing and reliable operation through complex pulley paths. Similar polyamide traction-layer structures are also used in industrial nylon flat belts, with different friction surfaces selected according to carton handling and machine requirements.
Polyester-Based Construction
Polyester-based constructions provide stable running and controlled elongation for continuous carton handling. Surface and belt configuration can be selected according to machine speed, pulley arrangement and operating requirements, including high-speed production lines where stable belt running is important.
Folder Gluer Belt Positions and Functions
Different sections of a folder gluer machine can use different belt constructions and functional belt types. Belt selection depends on the machine position, carton handling requirement, belt path, surface grip and operating conditions.
| Machine Section | Belt Function | Key Requirements | Related Belt Solution |
|---|---|---|---|
| Feeder Section | Separates and introduces carton blanks into the machine | Consistent grip, controlled feeding, wear resistance | Feeder Belt |
| Vacuum Feeding / Positioning | Uses suction to assist blank feeding or positioning where required | Stable suction, accurate positioning, suitable perforation configuration | Vacuum Belt |
| Folding / Transport Section | Guides and transports carton blanks through folding sections | Dimensional stability, consistent grip, repeated flexing | Folder Gluer Belt |
| Gluing / Transfer Section | Maintains controlled carton movement during gluing and transfer | Stable belt speed, controlled friction, reliable running | Folder Gluer Belt |
| Press / Delivery Section | Supports folded cartons through downstream compression and delivery | Wear resistance, stable handling, continuous operation | Application-specific machine belt |
Folder Gluer Belt Specifications
Folder gluer belts are supplied according to machine and application requirements rather than one universal specification.
| Parameter | Available Selection |
|---|---|
| Belt Construction | Polyamide / Polyester / Application-specific construction |
| Contact Surface | Rubber / Application-specific friction surface |
| Belt Length | According to machine or existing belt |
| Belt Width | According to machine or existing belt |
| Belt Thickness | Matched to belt construction and pulley system |
| Surface Grip | Selected according to carton material and machine position |
| Joining Method | According to belt construction and installation |
| Belt Configuration | Machine-specific replacement or new application |
Folder Gluer Belt Joining Options
Joining method is an important consideration for folder gluer belt installation and maintenance. The suitable joint should be selected according to belt construction, pulley diameter, operating speed, belt path and installation accessibility. A joint that is too stiff for small pulleys or repeated reverse bending can affect belt running and service life.
When selecting a replacement belt, the existing joining method should be checked together with belt thickness, length and pulley arrangement.
If the machine has limited installation access, provide information about the belt path and installation requirements when requesting a quotation.
Get Free Quote of Folder Gluer Belts
Looking for a reliable folder gluer belt supplier for a new machine or an existing belt replacement?
Send us your machine model, belt dimensions, existing belt reference and quantity for specification review and quotation.
Folder Gluer Belt Selection
Selecting a folder gluer belt starts with identifying its position and function within the machine. Belt construction, dimensions, surface grip, pulley arrangement, and joining method should then be matched to the operating requirements of that section.
1. Machine and Existing Belt
Confirm the machine manufacturer, model, belt position and available existing belt specifications.
2. Belt Dimensions and Construction
Check belt length, width, thickness, traction-layer construction, surface and existing joint.
3. Pulley and Belt Path
Pulley diameter, reverse bending and belt routing affect the required flexibility and construction.
4. Operating Requirements
Consider machine speed, carton material, required grip, joining requirements and production conditions.
For an existing machine, matching the original belt construction is often the most practical starting point before evaluating alternative configurations.
Folder Gluer Belts Replacement
Replacing a worn folder gluer belt does not always require identifying the original belt solely by brand or product code. TRANDVOX supports replacement folder gluer belt matching using available machine and belt information.
Where the original belt specification is unavailable, an existing belt sample or detailed photographs can help identify the required construction and surface characteristics.
Information Needed for Replacement Matching
For faster specification confirmation, please provide as much of the following information as possible:
| Information | Example |
|---|---|
| Machine Brand | Existing folder gluer manufacturer |
| Machine Model | Model number |
| Belt Part Number | OEM or existing belt reference |
| Belt Length | mm |
| Belt Width | mm |
| Belt Thickness | mm |
| Surface | Smooth / textured / high grip |
| Joint | Existing joining configuration |
| Belt Position | Folding / gluing / transfer / press / delivery section |
| Existing Problem | Wear / slipping / elongation / damaged joint |
| Reference | Photo, drawing or sample |
This information allows the belt specification to be evaluated against the actual machine configuration instead of selecting a replacement by dimensions alone.
FAQ
A folder gluer belt is an application-specific machine belt used to transport, guide and support paperboard blanks through folding, gluing, transfer and delivery sections of folder gluer machines.
Folder gluer belts can use polyamide, polyester or other reinforced traction-layer constructions combined with rubber or other application-specific friction surfaces.
Not necessarily. Some folder gluer belts use a polyamide or nylon traction-layer construction, but folder gluer belts can also use polyester and other structures. Nylon flat belt describes a belt primarily by its material and construction, while folder gluer belt describes the belt by its machine application.
Yes. Replacement belts can be matched according to existing belt dimensions, machine model, part number, belt markings, photos, drawings or physical samples.
Provide the machine brand and model, belt length, width, thickness, surface type, joint, existing belt markings and photographs whenever possible. An old belt sample or technical drawing can also be used for specification matching.
Many folder gluer applications require repeated flexing and reverse bending around multiple pulleys. The belt construction should therefore be selected according to pulley diameter, belt path and operating conditions.
